Customer pain: Inconsistent product quality from uneven coating.
Requirement: Precise flow control, uniform spray pattern.
Coating & Spraying Application Nozzles
Precision nozzles for release agent spraying, oil spraying, wax coating, food additives, and lubrication. Air atomizing and hydraulic nozzles for uniform, controlled applications.
Common Coating & Spraying Challenges & CYCO Solutions
Achieving Uniform Coating Thickness
Spraying Viscous or Heavy Liquids
Customer pain: Clogging and inconsistent atomization.
Requirement: Siphon or pressure-fed design, large passages.
Fine Atomization for Food Applications
Customer pain: Food safety and hygiene requirements.
Requirement: Stainless steel, FDA-compliant materials.
Plastics · Casting · Food

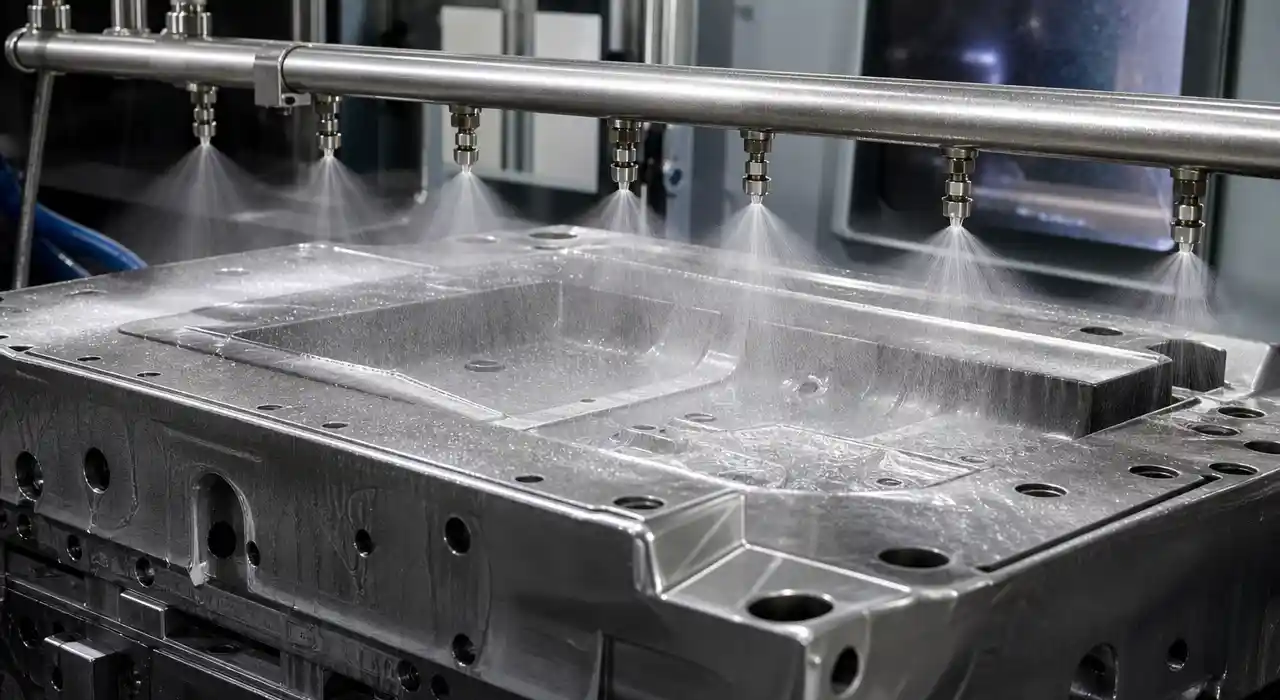

Release Agent Spraying
Uniform application of release agents to molds, dies, and baking pans to prevent sticking. Precise spraying ensures even release agent distribution without overspray or pooling.
Associated Industries: Automotive · Food
Spraying Challenges:
- Even distribution of release agent over complex mold surfaces
- Avoiding pooling or run-off that causes product defects
- Minimizing overspray to reduce chemical waste
Recommended Products:
CYCO-123 Adjustable (107) – wide capacity, efficient
Adjustable Air Atomizing (150) – precise control, SS/Brass

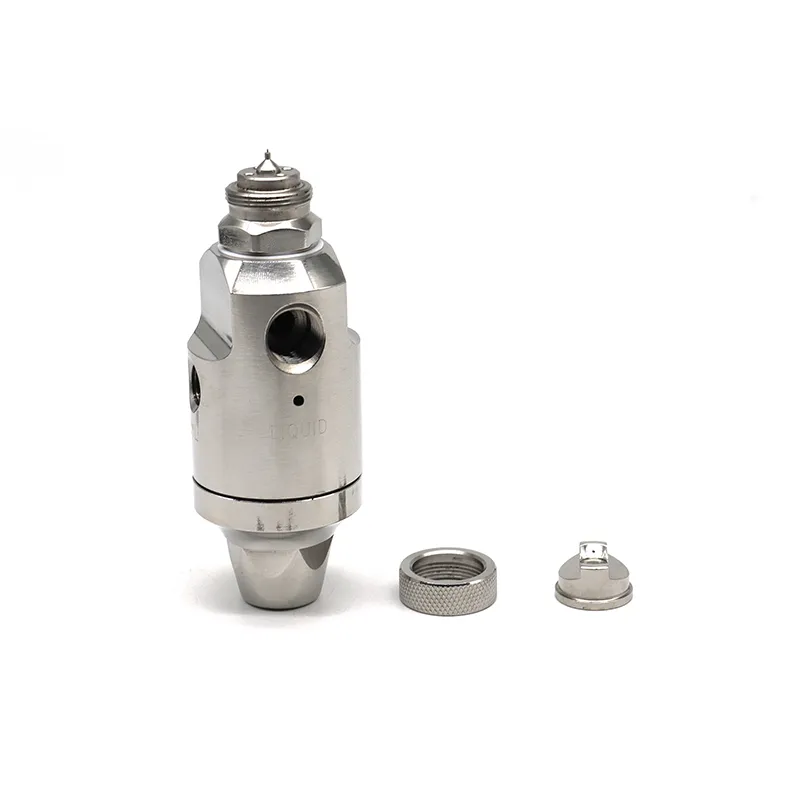

SUE15B Air Cap (104) – fan pattern, adjustable
💡 Engineering Tip: For mold release, use Adjustable Air Atomizing (150) with fine atomization to achieve uniform coverage. For baking pans in food applications, use 316SS materials and clean spray lines regularly to prevent residue buildup.
Food · Industrial

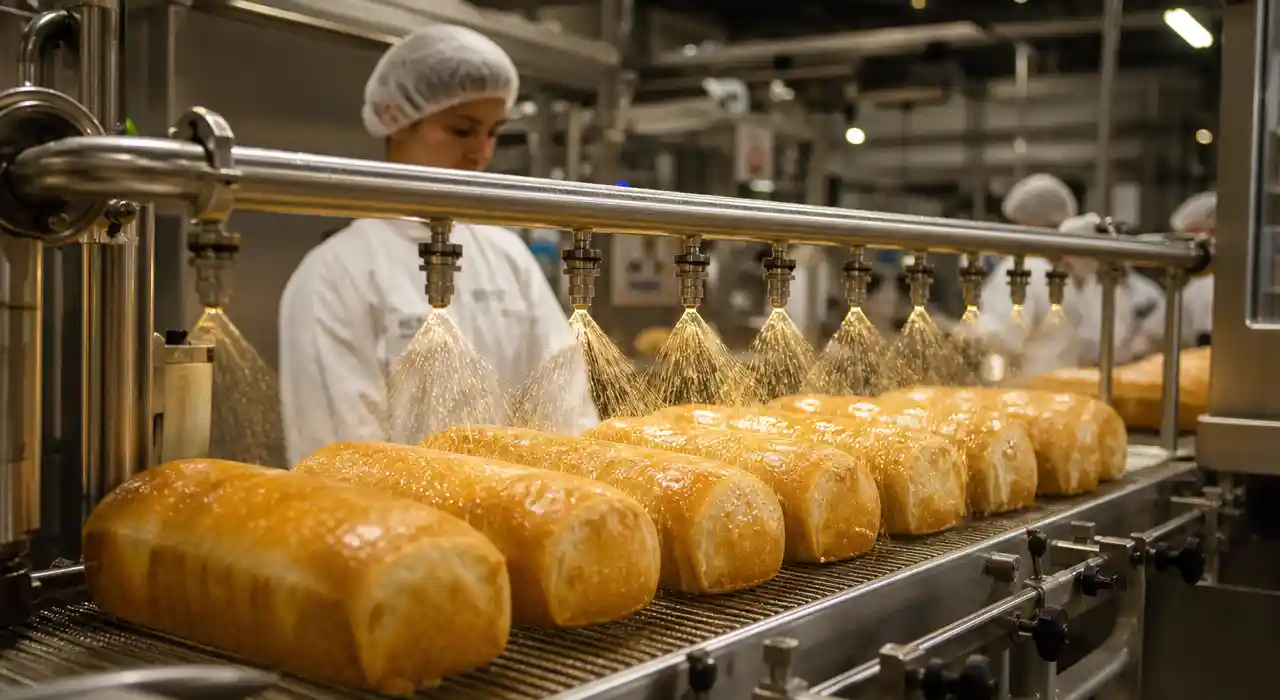

Oil Spraying
Application of cooking oils, lubricating oils, and anti-corrosion oils to products and surfaces. Consistent oil application improves product quality and prevents sticking or corrosion.
Associated Industries: Food · Steel
Spraying Challenges:
- Handling different oil viscosities (light to heavy)
- Achieving uniform droplet size for consistent coverage
- Preventing dripping and run-off on vertical surfaces
Recommended Products:

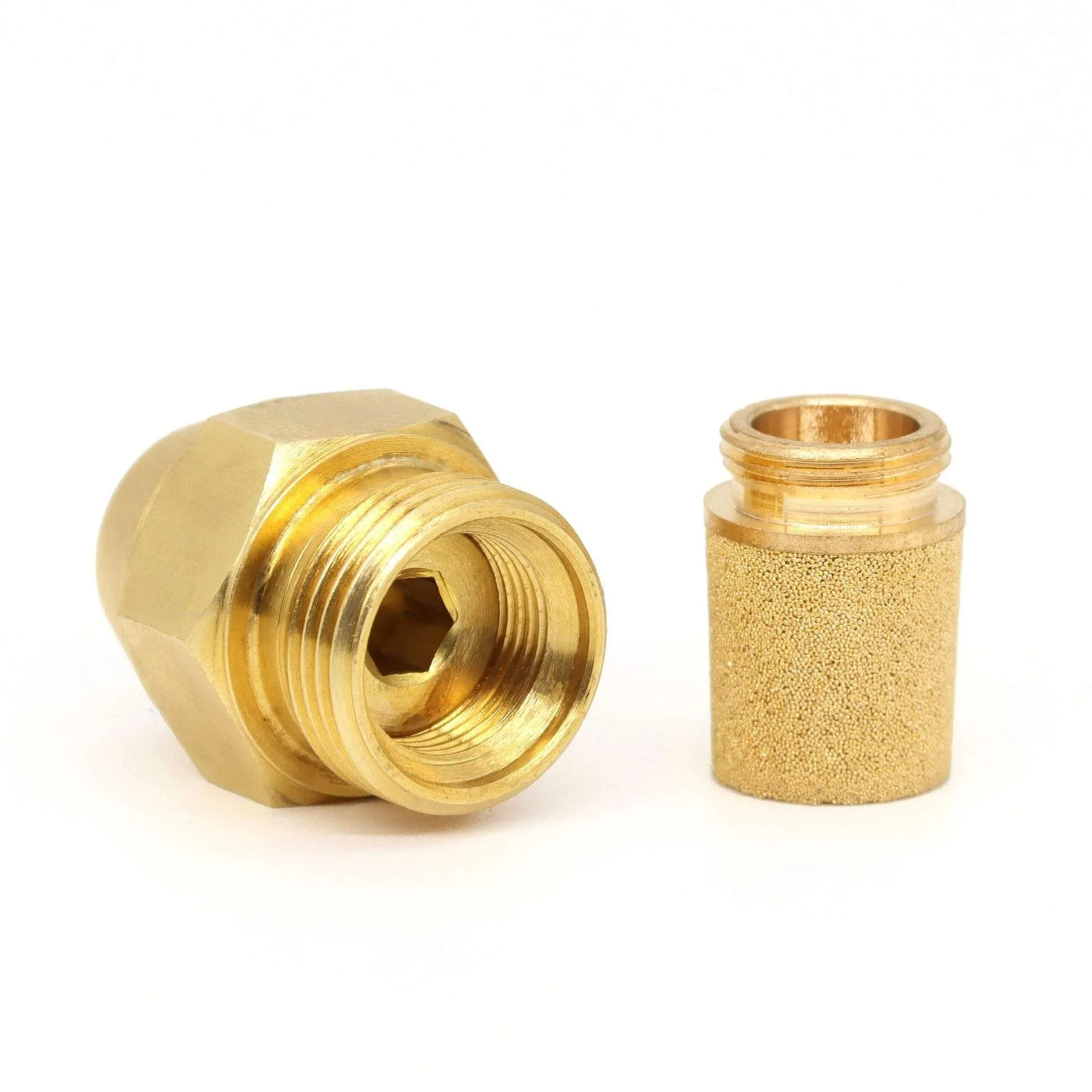

OD1.75 Fuel Oil Burner (97) – solid cone, clog-free

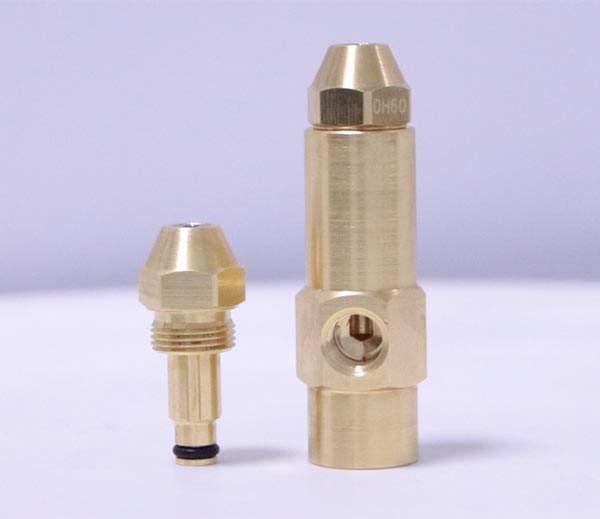

MK-04 Siphon Oil Nozzle (115) – fine atomization, low pressure
OD Fuel Oil Burner (116) – 30°–80°, solid cone
💡 Engineering Tip: For food oil spraying, use MK-04 (115) with 316SS construction. For industrial lubrication, choose OD1.75 (97) for heavy oils. Preheat viscous oils to improve atomization.
Food · Packaging

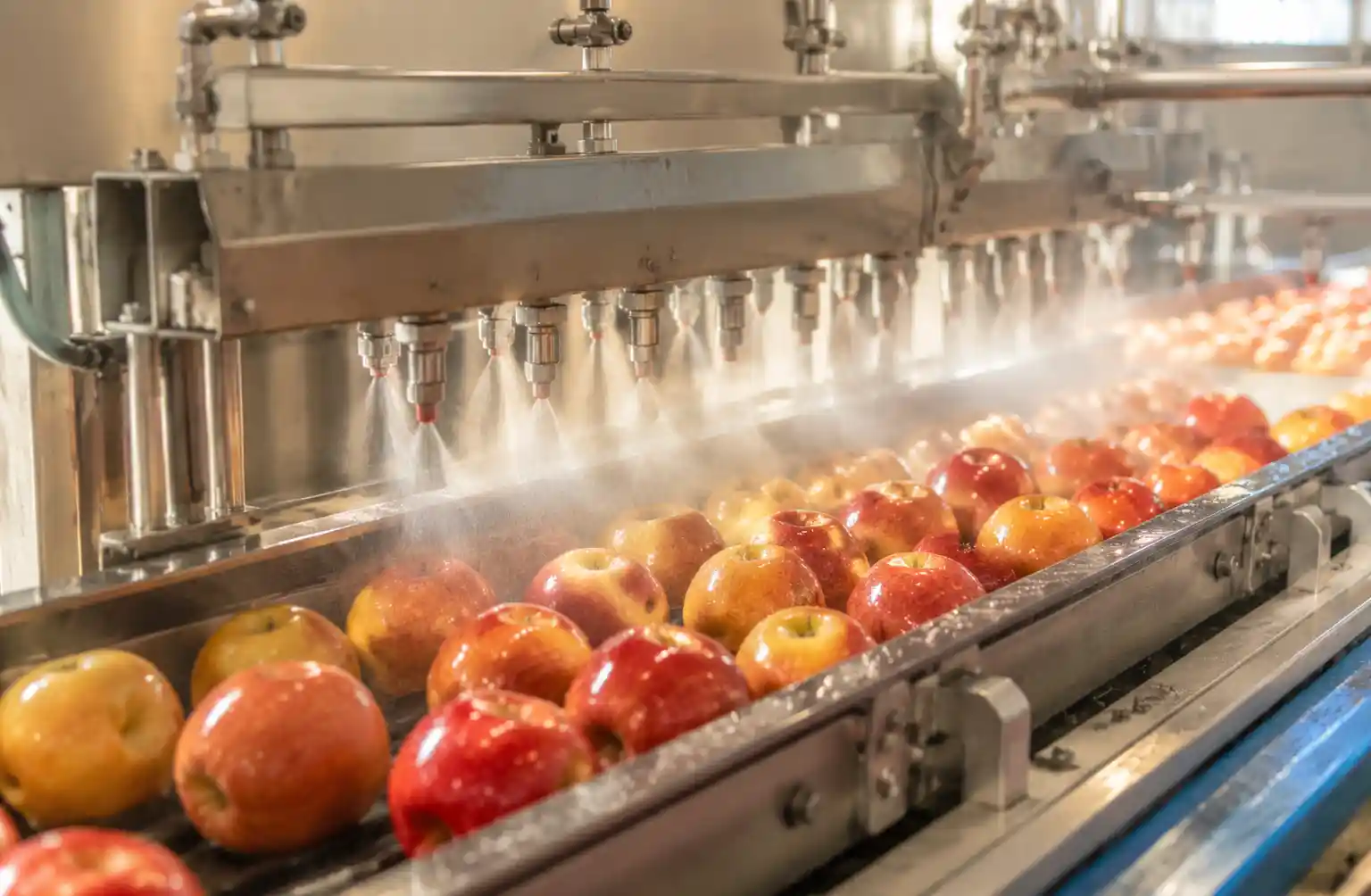

Wax Coating
Application of wax coatings to fruits, vegetables, and food products for preservation and appearance. Wax coatings extend shelf life by reducing moisture loss and providing a protective barrier.
Associated Industries: Food ·
Spraying Challenges:
- Even wax distribution without pooling or streaking
- Operating at elevated temperatures to melt wax
- Preventing nozzle clogging from wax solidification
Recommended Products:
CYCO-123 Adjustable (107) – wide capacity, efficient

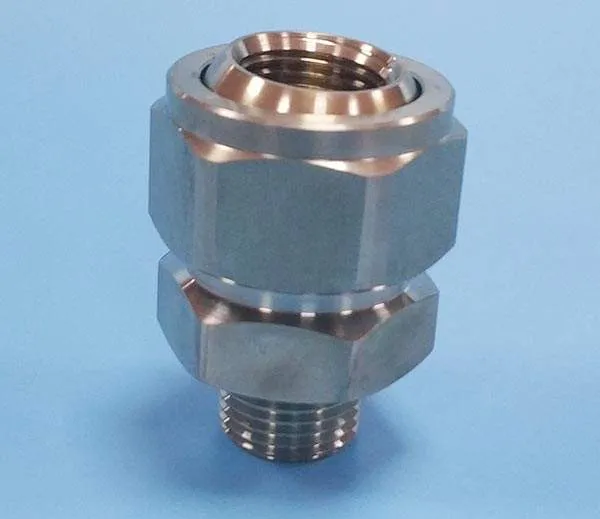

155RS Adjustable Spray (69) – 303/316, tool-free
SUE15B Air Cap (104) – fan pattern, adjustable
💡 Engineering Tip: For wax coating, use CYCO-123 (107) with heated spray lines. Maintain wax temperature 10-15°C above melting point. After spraying, flush lines with hot solvent to prevent wax buildup.
Food · Beverage

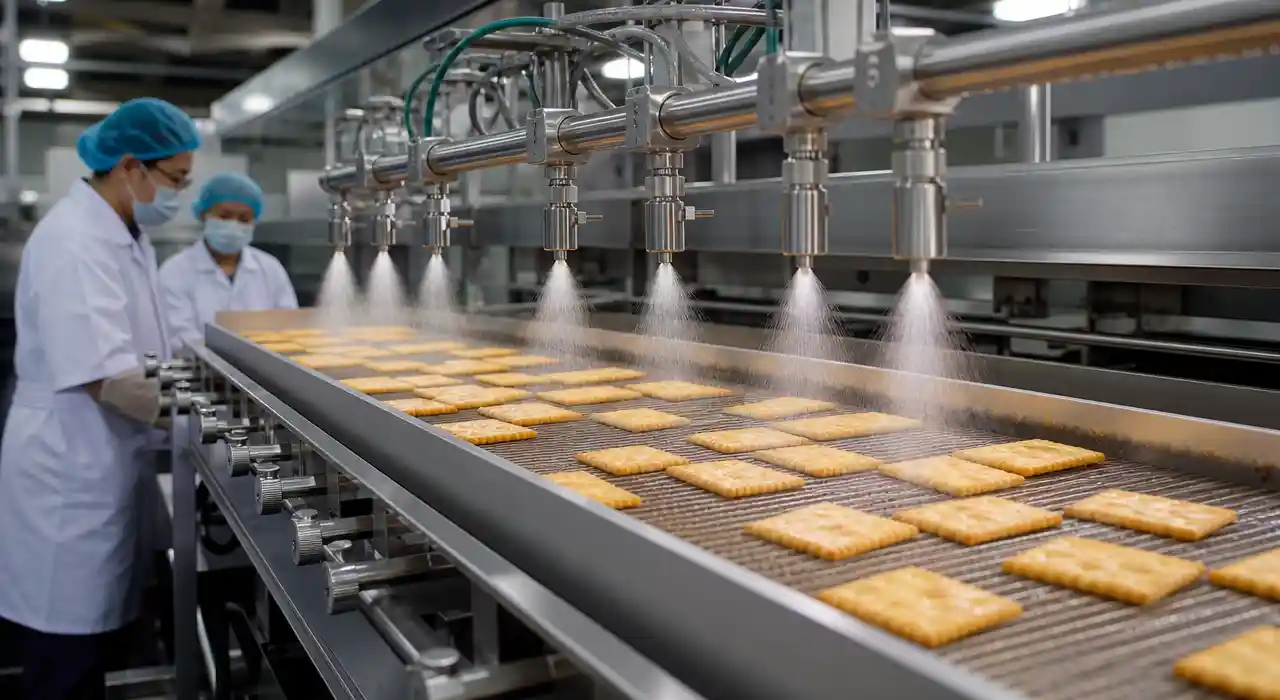

Food Additive Spraying
Precision spraying of food additives, flavors, and preservatives on food products. Accurate dosing ensures consistent product taste, appearance, and shelf life.
Associated Industries: Food & Beverage
Spraying Challenges:
- Precise dosing of expensive additives and flavors
- Food safety and hygiene requirements
- Avoiding over-spray that causes product defects
Recommended Products:
DJ Fine Misting (101) – 10°–70°, stainless steel
DJ Automatic Air Atomizing (151) – fine mist, 0.7–4 bar
SUE15B Air Cap (104) – fan pattern, adjustable
💡 Engineering Tip: For food additives, use DJ (101) or DJ Auto (151) with 316SS construction for FDA compliance. Use pulse-width modulation (PWM) control for precise dosing based on product conveyor speed.
Food · Bakery

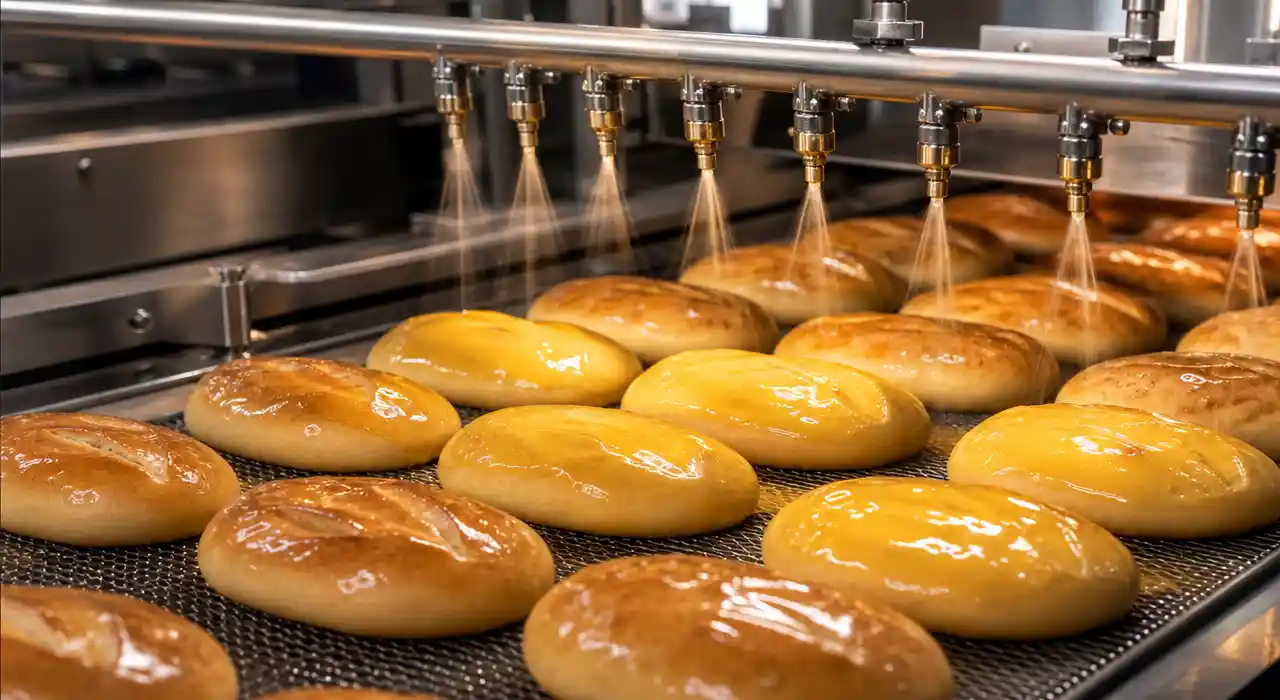

Glazing Spray
Application of glazes, egg washes, and sugar solutions to bakery and confectionery products. Uniform glazing improves product appearance, flavor, and texture.
Associated Industries: Food & Beverage
Spraying Challenges:
- Even glaze distribution without pooling or streaking
- Handling viscous sugar solutions and egg mixtures
- Avoiding glaze buildup on nozzle tips
Recommended Products:
DJ Fine Misting (101) – 10°–70°, stainless steel
CYCO-123 Adjustable (107) – wide capacity, efficient
DJ Automatic Air Atomizing (151) – fine mist, 0.7–4 bar
💡 Engineering Tip: For glazing, use DJ (101) with flat fan pattern for even coverage. Preheat glazing solution to reduce viscosity. Clean nozzles at the end of each production shift to prevent buildup.
Automotive · Industrial

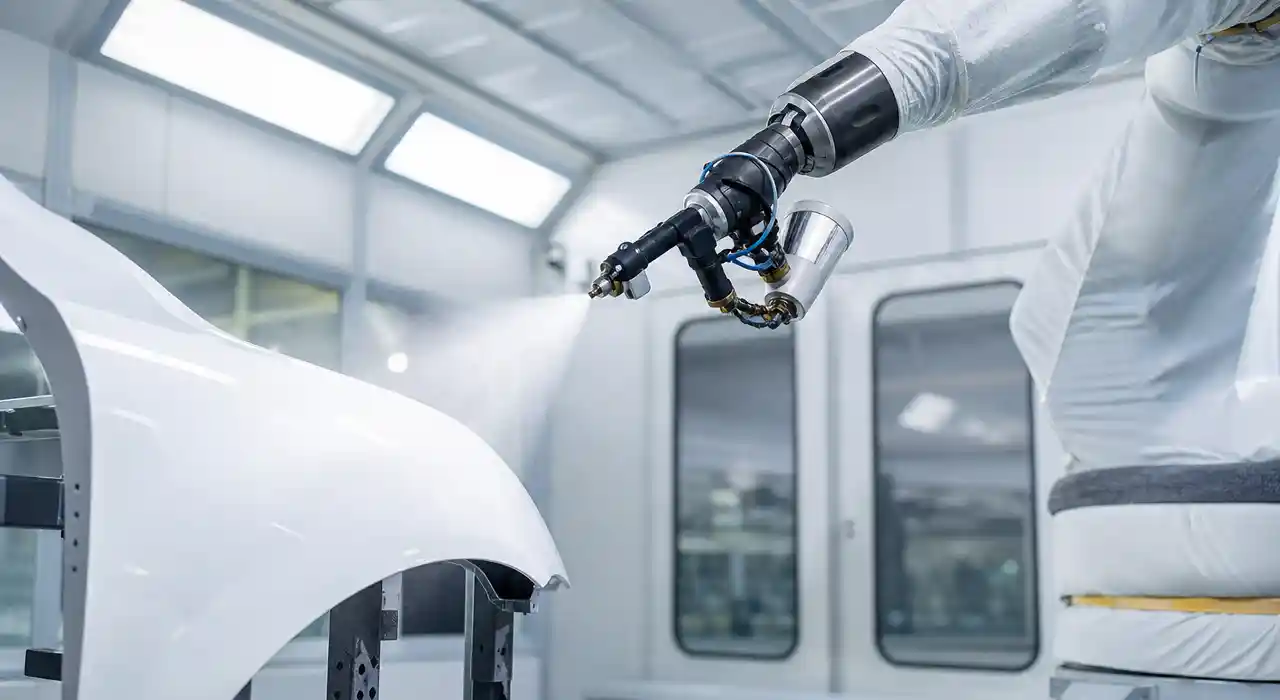

Paint Spraying
Precision paint application for automotive, industrial, and product finishing. Consistent spray quality ensures uniform color, gloss, and film thickness.
Associated Industries: Automotive ·
Spraying Challenges:
- Achieving consistent film thickness across complex surfaces
- Minimizing overspray to reduce paint waste
- Maintaining atomization quality for different paint viscosities
Recommended Products:
SUE15B Air Cap (104) – fan pattern, adjustable
Adjustable Air Atomizing (150) – precise control, SS/Brass
K1 Air Absorption Flat Fan (73) – air/steam, uniform
💡 Engineering Tip: For automotive paint, use SUE15B (104) with electrostatic atomization for improved transfer efficiency. Optimize air and fluid pressure for each paint formulation. Regular tip cleaning prevents orange peel defects.
Steel · Metal Processing

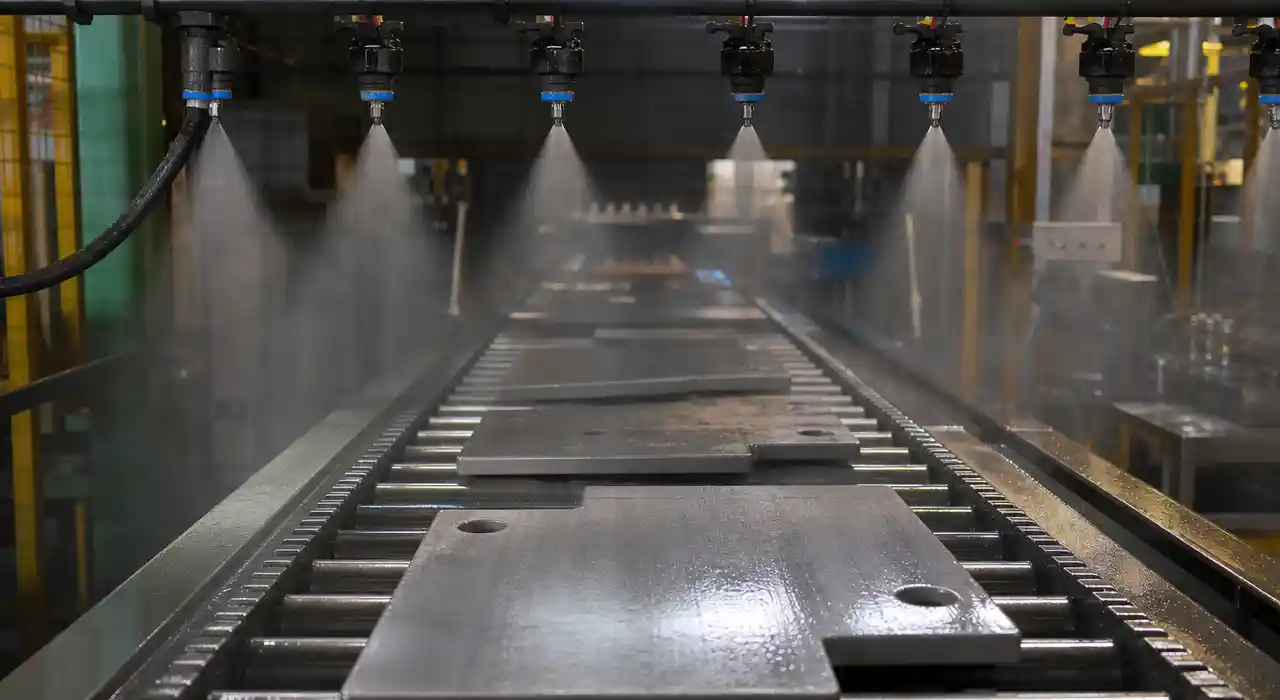

Rust Prevention Spraying
Application of anti-corrosion oils and rust preventatives to metal products. Continuous, uniform coating protects parts during storage and transport.
Associated Industries: Steel · Automotive
Spraying Challenges:
- Complete coverage of complex part geometries
- Controlling film thickness to avoid dripping and waste
- Handling high-viscosity rust preventatives
Recommended Products:
OD1.75 Fuel Oil Burner (97) – solid cone, clog-free
MK-04 Siphon Oil Nozzle (115) – fine atomization, low pressure

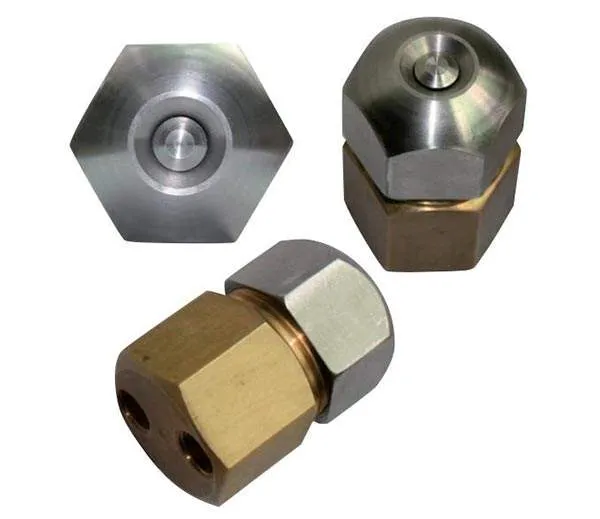

OD Oil Burner Nozzle (109) – 30°–80°, solid/hollow cone
💡 Engineering Tip: For rust prevention, use MK-04 (115) for fine atomization of light oils. For heavy rust preventatives, use OD1.75 (97) with preheating to reduce viscosity. Install drip trays to catch overspray.
Industrial · Machinery

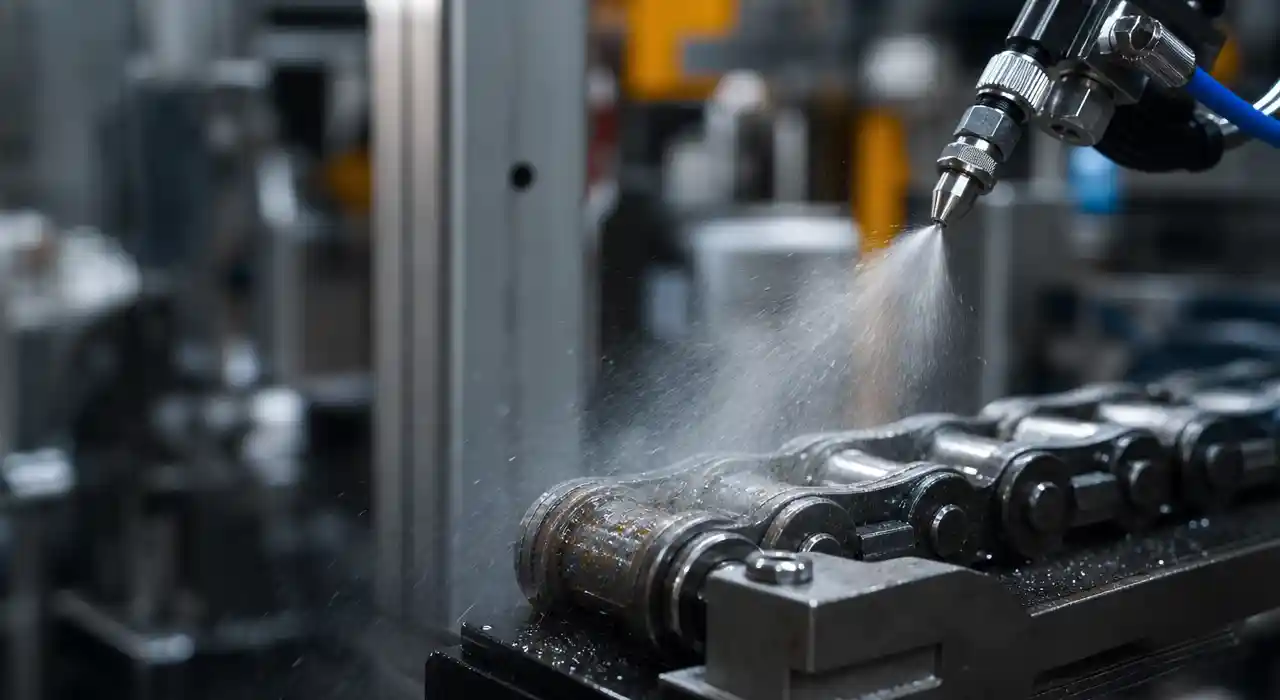

Lubrication Spraying
Precision application of lubricants to machinery, bearings, and conveyor systems. Proper lubrication reduces wear, extends equipment life, and improves efficiency.
Associated Industries: Automotive
Spraying Challenges:
- Precise dosing to avoid over-lubrication
- Reaching difficult access points in machinery
- Handling different lubricant viscosities
Recommended Products:
CYCO-123 Adjustable (107) – wide capacity, efficient
Adjustable Air Atomizing (150) – precise control, SS/Brass
K1 Air Absorption Flat Fan (73) – air/steam, uniform
💡 Engineering Tip: For lubrication, use Adjustable Air Atomizing (150) for fine control. For conveyor bearings, use CYCO-123 (107) with intermittent spray cycles. Install flow meters to monitor lubricant consumption.
Select Your Industry for Tailored Recommendations
Explore coating and spraying nozzle solutions specific to your sector
Automotive Manufacturing
Paint, rust prevention, release agent
Top picks: SUE15B · Adjustable
Learn More →
Frequently Asked Questions
How do I avoid overspray when coating small parts?
Use air atomizing nozzles with adjustable spray width. Reduce liquid pressure and increase air pressure for finer atomization and better control.
What is the best nozzle for spraying release agents on molds?
Air atomizing nozzles with flat fan pattern provide even coverage. Adjustable models like CYCO‑123 allow fine tuning for different mold geometries.
Can I spray food‑grade oils with these nozzles?
Yes, use 316L stainless steel or FDA‑approved materials. Choose siphon‑fed or pressure‑fed designs to handle viscous oils.
How do I clean nozzles after spraying sticky coatings?
Immediately flush with solvent or water. For quick maintenance, use quick‑detach nozzles like the 155RS that can be disassembled without tools.
How do I control coating thickness accurately?
Use adjustable air atomizing nozzles with precise flow control. Ensure proper nozzle spacing and overlap for even coverage. Use a flow meter for monitoring.
What causes uneven coating and how to fix it?
Uneven coating is often due to incorrect nozzle spacing or pressure fluctuations. Check for worn tips, adjust overlap (30–50%), and stabilize supply pressure.
